Overload and Short Circuit Protection Switch

Product Item: Overload and Short Circuit Protection Switch
Category: Overload protector

The overload protector is a bimetal structure, which is overloaded when the car is recharged.
Fast power protection, users can reset manually and automatically reset, ATC type push-in terminal design,
Can replace disposable fuses, widely used in the automotive modification and maintenance market.

Cross to Bussmann 19X, MINI CIRCUIT BREAKERS

PRODUCT DETAIL

Overload protector Specifications
The overload protector is a bimetal structure, which is overloaded when the car is recharged. Fast power protection, users can reset manually and automatically reset, ATC type push-in terminal design, Can replace disposable fuses, widely used in the automotive modification and maintenance market. Cross to Bussmann 19X, MINI CIRCUIT BREAKERS Rating: T1: 8-50A, 14Vdc T2&T3: 8-50A, 28Vdc Interrupt Rating: 150A@14Vdc (for 8-10A) 225A@14Vdc (for 15A) 300A@14Vdc (for 20A) 450A@14Vdc (for 25, 30A) 600A@14Vdc (for 35, 40A) 750A@14Vdc (for 50A) Operating Tempeature rating: -40℉(-40℃) to 185℉(85℃) Stortage Temperature rating : -40℉(-40℃) to 260℉(125℃) Marking: Type / Amp / Voltage Termination:Compatible with fuse blocks using MAXI Compliance: SAE J553
Model Code:
Ⅰ Type	1: Type 1: Auto Reset 2: Type 2: Modified Reset 3: Type 3: Manual Reset
Ⅱ Rating	08-50 (A)

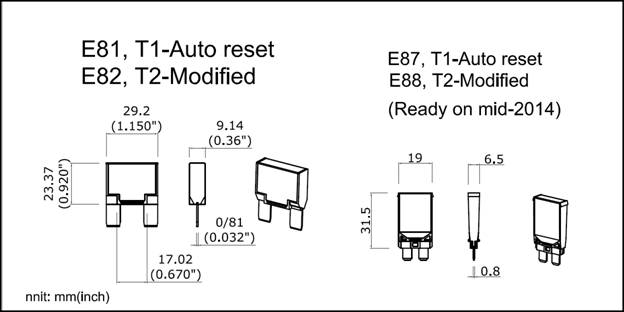

Ⅲ Terminal Code	1, 3, 4 , 5 (See “Dimensional Outline Drawing”)
Ⅵ	(Customer’s special request)
