product name：Glass chip thermistor
Single-ended glass seal thermistor
Glass diode thermistor
product description：
Glass thermistor has three kinds of packages:SMD type, Single-ended glass seal, Diode class
Product Features：
0.5 ~ 1000 KΩ · High accuracy and precision
Glass package, suitable for high temperature and high humidity harsh environment
Small size, rugged, and can also be mounted on a printed circuit board
Response speed
Operating temperature range: - 55 ℃ ~ 300 ℃
Using the chip:
SMD type,Single-ended glass seal:NTC thermistor chip, (common resistance:5K,10K,20K,50K,100K(B value:3270 ,3470 ,3380,3435 ,3470 ,3950 ,3950 ,3900 ,3950 ,3950 ,3990 ,4000 ,4100 ,4200)
Glass Diode Thermal Resistance: NTC thermistor chip (common resistance: 400R ,500R ,1K ,1.8K ,2K,2.5K ,2.89K ,4.7K ,5K ,7.5K ,8.2K ,10K,11.78K,12K,2.5K,15K,20K,22K,22.5K,30K,33K,40K,40.27K,47K,50K ,57.5K ,8.3K,92K,100K ,104K,105K,107.1K ,150K,192K,200K ,230K ,238K,250K ,455K ,470K,,500K ,520K ,530K,533K ,540K ,542K ,545K ,548K ,583K ,1M ,1.1M,1.388M ,2.3M (B值:3200 ,3000 ,3300 ,3460 ,3470 ,3490 ,3470 ,3230 ,3470 ,3430 ,3950 ,3270 ,3550 ,3600 ,3950 ,3950 ,3950 ,3750 ,4200 ,3850 ,3950 ,3980 ,3400 , 4220 ,3860 ,4420 ,4150 ,4120,4370 ,4050 ,4080 ,4090 ,4110 ,4083 ,4140 , 4230 ,4600 4500)
PTC Positive Temperature Coefficient Thermistors:(KTY81,KTY82,KTY83,KTY84,KTY85)
Product Size:

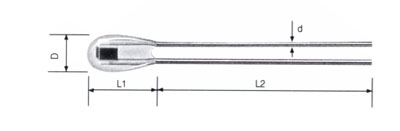

Single-ended glass seal thermistor Product Size:
| model | D | L1max | L2 | d±0.05 | |
| MF51-2.00 | 2.00±0.20 | 3.80 | 30±5 | 50±5 | 0.23 |
| MF51-1.20 | 1.20±0.20 | 1.80 | 30±5 | 50±5 | 0.21 |
| MF51-0.70 | 0.80±0.20 | 1.20 | 30±5 | 50±5 | 0.15 |
There are two product size specifications,
● Model: B1 (L = 3.6mm, D = 1.5mm) B2 (L = 1.8mm D = 1.1mm)
● Packing: 4000 pcs / bag or braid;

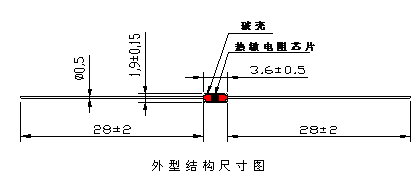

MF58 Diode Glass Seal Thermistor:
L=57.8mm, D=1.8mm
Appearance picture：

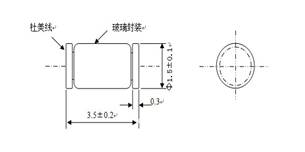

Glass SMD thermistor Single-ended glass seal thermistor
Glass seal Diode thermistor
Applications range：
Glass NTC thermistor Applications:
Household appliances temperature control and temperature detection: such as rice cookers, ovens, air conditioners, microwave ovens, electric fans, electric heating, etc.
Office automation equipment, such as copier, printer temperature detection or temperature compensation;
Industrial, medical, environmental protection, weather, food processing equipment, temperature control and testing;
Liquid level indication and flow measurement;
The field of mobile phone batteries and chargers;
Instrument coils, integrated circuits, quartz crystal oscillator and thermocouple temperature compensation.
PTC thermistor glass seal Diode Thermistor:
1. Automotive industry temperature detection and control
2. Household appliances temperature detection and control
3. Precision circuits and crystal oscillator temperature compensation
4. Micro-motor speed control
5. Medical equipment temperature detection and control system
Composition Materials：
Diode thermistor composition materials: 1. Glass shell 2. Thermal chip, 3. Tinned wire
SMD glass thermistor composition of materials: 1. Glass shell 2. Copper-coated nickel wire, 3. Tinned steel electrodes, 4. Thermal chip
Single-ended glass seal thermistor composition materials: 1. Glass shell 2. Copper wire, 3. Thermal chip
Precautions for use：
The rated current of the thermistor shall not exceed 1 mA.
Do not apply abrupt temperature changes beyond the upper and lower limits of the operating temperature range;
Do not apply excessive vibration, shock and pressure.
