KSD-01F_JUC-31F Minimal temperature control switch

Product Item: KSD-01F_JUC-31F Minimal temperature control switch
Category: Miniature thermal protector
Model: KSD-01F
Technical parameters: system touch temperature controller. Sensitive and reliable. Suitable for circuit boards and other applications for temperature control or thermal overload protection.
1. Conditions of Use
① Relative humidity: 95% at + 20 ℃
② Atmospheric pressure: 86-106Kpa
③ Working position: any

2. Technical parameters ① Point form: 1D or 1H

  • PRODUCT DETAIL

Model: KSD-01F
Technical parameters: system touch temperature controller. Sensitive and reliable. Suitable for circuit boards and other applications for temperature control or thermal overload protection.
1. Conditions of Use
① Relative humidity: 95% at + 20 ℃
② Atmospheric pressure: 86-106Kpa
③ Working position: any

2. Technical parameters ① Point form: 1D or 1H


② Contact load: 220VAC 1.5A or 24VDC 1.5A
③ Insulation resistance: Normal temperature and humidity ≥50MΩ
④ Contact resistance: ≤ 100 mΩ
⑤ Electric strength: ≥500VAC
⑥ Weight <2g
Features: It has the characteristics of stable performance, high accuracy, small size, light weight, high reliability, long life, and small concerns about radio.

Precautions:
1. When using contact temperature-type installation, the metal cover should be close to the installation surface of the controlled appliance. In order to ensure the effect of temperature sensing, the surface of temperature sensing should be coated with thermal grease or other thermally conductive medium with similar properties.
2. Do not collapse, loosen or deform the top of the cover during installation, so as not to affect the performance.
3. Do not allow liquid to penetrate into the thermostat, do not make the shell crack, and do not change the shape of the external terminal at will.
4. The product is used in a circuit with a current not greater than 5A. Should choose copper core cross section for 0. 5-1㎜2 wire connection;
For use in circuits with a current not greater than 10A, the copper core cross section should be 0.75-1.5㎜2 wire connection.
5. The product should be stored in a warehouse with a relative humidity of less than 90% and a ventilated, clean, dry, non-corrosive gas at an ambient temperature below 40 ° C.
The classification of JUC-31F can be classified according to temperature, also according to material, or according to installation method.
Divided by the nature of the action: can be divided into normally open action and normally closed action.


● KSD-01F thermostat Specifications:
Operating temperature
Reply temperature
(Min)
Operating temperature difference
(Min)
Operating temperature
Reply temperature
(Min)
Operating temperature difference
(Min)
40℃
20℃
4℃
90℃
60℃
6℃
45℃
20℃
4℃
90℃
60℃
6℃
50℃
30℃
4℃
100℃
70℃
6℃
55℃
30℃
4℃
105℃
70℃
6℃
60℃
40℃
4℃
110℃
80℃
6℃
65℃
40℃
4℃
115℃
80℃
6℃
70℃
50℃
4℃
120℃
85℃
9℃
75℃
50℃
4℃
125℃
85℃
9℃
80℃
55℃
6℃
130℃
90℃
9℃
85℃
55℃
6℃


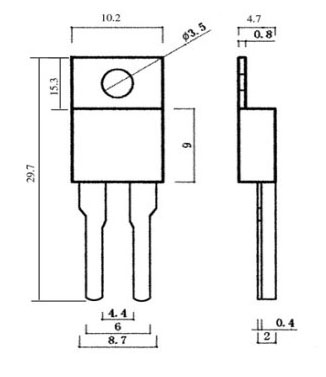

thermal trip switch
