Electronic Circuit Breaker Protection Trip
- PRODUCT DETAIL
|
Circuit breaker Specifications The over-current circuit breaker is a bimetal structure. When the car circuit is overloaded and the power is cut off quickly, the user can reset it manually or reset it automatically and turn it on again. Adopt MINI type push-in terminal design, and can replace one-time fuse blow function. Widely used in the automotive modification and maintenance market. |
|
|
Cross to Bussmann 19X, MINI CIRCUIT BREAKERS Plasic cover with a coler code, VS1(T1), VS2(T2), VS3(T3) Aluminum cover with a laser code, VS7(T1), VS8(T2), VS9(T3) Rating: 5-30A, 14Vdc Interrupt Rating: 150A@14Vdc (for 8-10A) 225A@14Vdc (for 15A) 300A@14Vdc (for 20A) 450A@14Vdc (for 25, 30A) Operating Tempeature rating: -40℉(-40℃) to 185℉(85℃) Stortage Temperature rating: -40℉(-40℃) to 260℉(125℃) Marking: Type/ Amp/ Voltage Termination: Compatible with 280 Type fuse blocks using 0.32in (8.1mm) centerlinew spacing Compliance: SAE J553 |
|

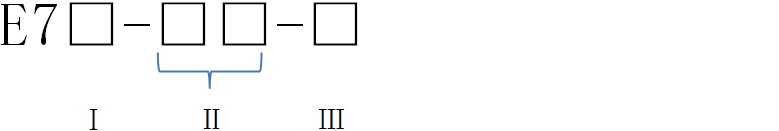

Model Code: |
|
|
Ⅰ Type |
1: Type 1: auto reset 2: Type 2: modified reset 3: Type 3: manual reset |
| Ⅱ Rating | 05-30 (A) |
| Ⅲ | (Customer’s special request) |
|

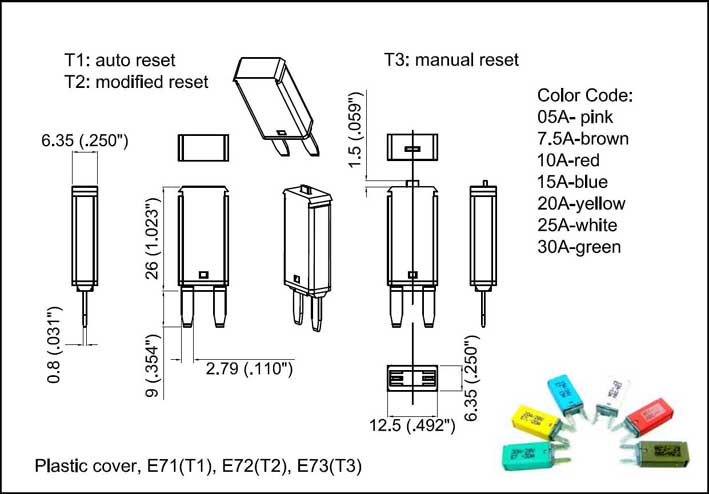

Dimensional Outline Drawing |
