KSD301 sudden jump thermostat
- PRODUCT DETAIL

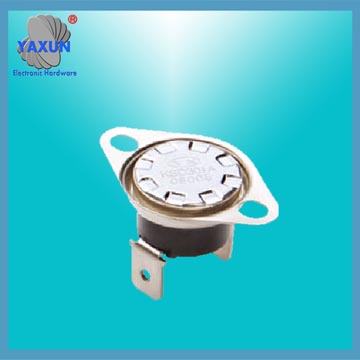

KSD series sudden jump thermostat, it is a thermostat switch that uses bimetal as the temperature sensing component.
[Temperature]: 50°C-250°C, one specification every 5°C, and one specification every 5°C. Any temperature within the range can be provided according to customer requirements, and the wiring harness of the thermostat switch can be riveted.
1. Small size, light weight, long life and high reliability;
2. With fixed installation holes, it is convenient to install;
3, radio interference is small, and no arc;
4. Good protection against overload, locked-rotor, or short-circuit over-current;
5. The overload trip current value can be set according to customer requirements;
6. Very accurate trip time (4~10s) to prevent the equipment temperature from being too high;
Safety certification: UL, CSA, VDE, CQC, ROHS;
Electrical Specifications
Technical Parameters
Scope of application
[Temperature]: 50°C-250°C, one specification every 5°C, and one specification every 5°C. Any temperature within the range can be provided according to customer requirements, and the wiring harness of the thermostat switch can be riveted.
1. Small size, light weight, long life and high reliability;
2. With fixed installation holes, it is convenient to install;
3, radio interference is small, and no arc;
4. Good protection against overload, locked-rotor, or short-circuit over-current;
5. The overload trip current value can be set according to customer requirements;
6. Very accurate trip time (4~10s) to prevent the equipment temperature from being too high;
Safety certification: UL, CSA, VDE, CQC, ROHS;
Electrical Specifications
| 16A/250V AC (resistive load) | 15A/125V AC (resistive load) |
| 10A/250V AC (resistive load) |
Technical Parameters
| Operating temperature range | 50℃-250℃, one specification every 5℃. Any temperature within the range can be provided according to customer requirements |
| Temperature tolerance | Action: ±3, ±5, ±8; Reset: ±4, ±8, ±12 |
| Silver contacts open | Normally closed type (NC); normally open type (NO) |
Scope of application
| Water dispenser, electric water heater, refrigerator, air conditioner, glue machine, microwave oven | Dishwasher, dryer, disinfection cabinet, sandwich toaster, electric coffee maker, electric cooker |
| Car seat heater, car preheater |
